DANFOSS NRVH danfoss-nrvh Check Valve Brass 10mm ODF MPN NRVH

Description

DANFOSS danfoss-nrvh

English version first - Version francaise plus bas.

English version first — Version française plus bas.

Description

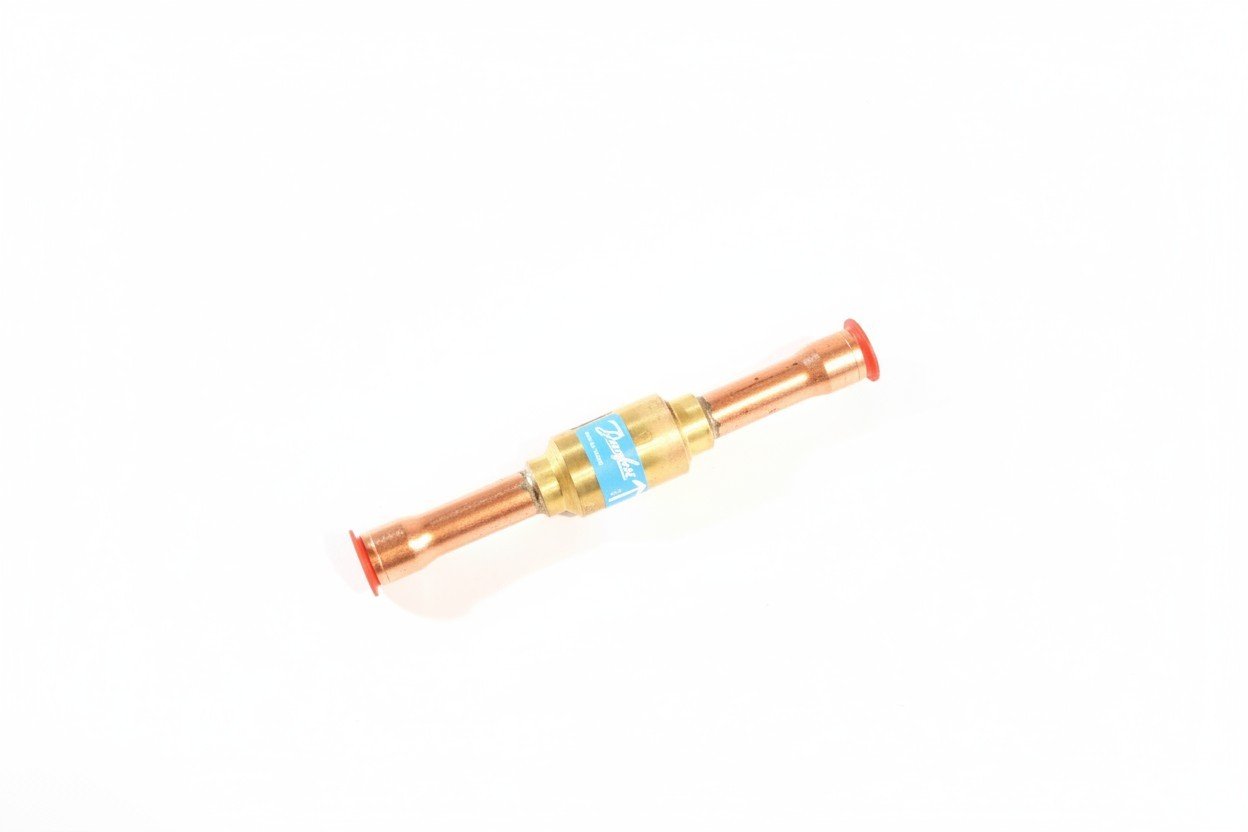

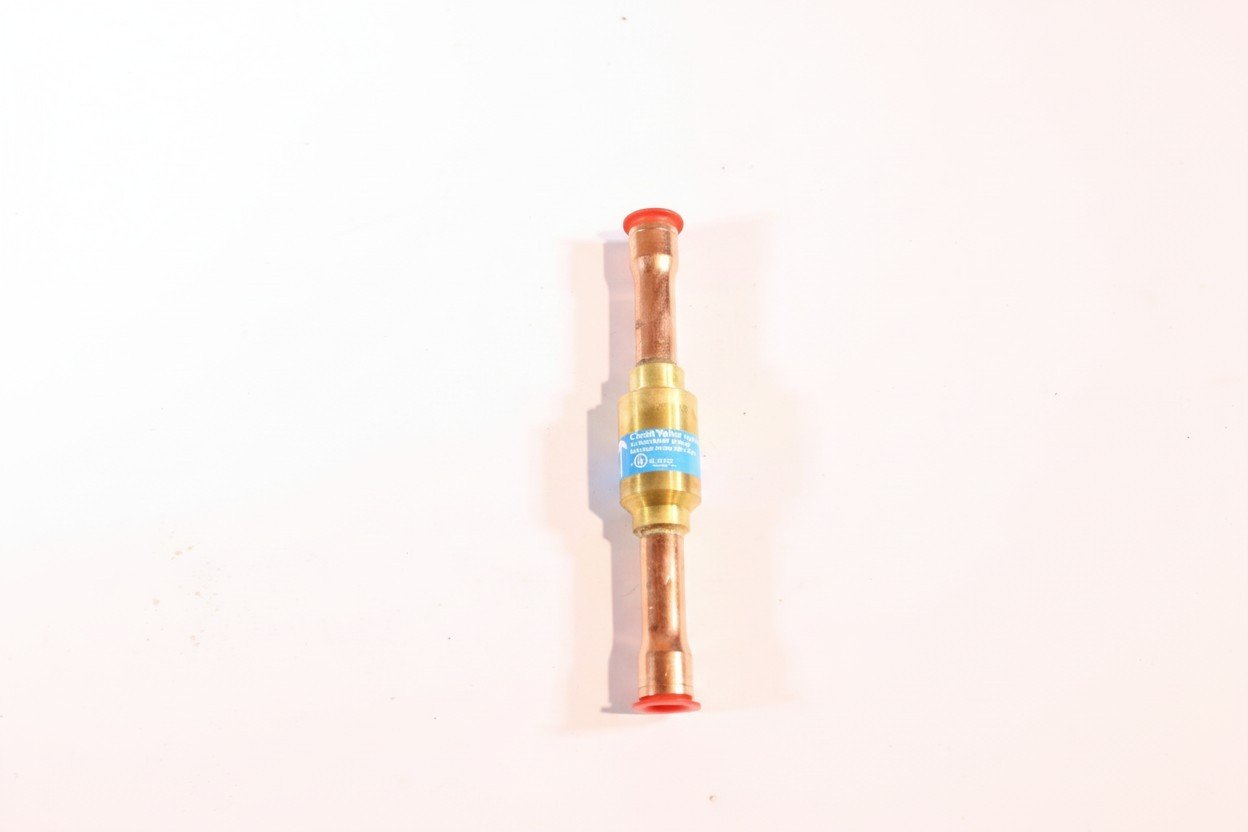

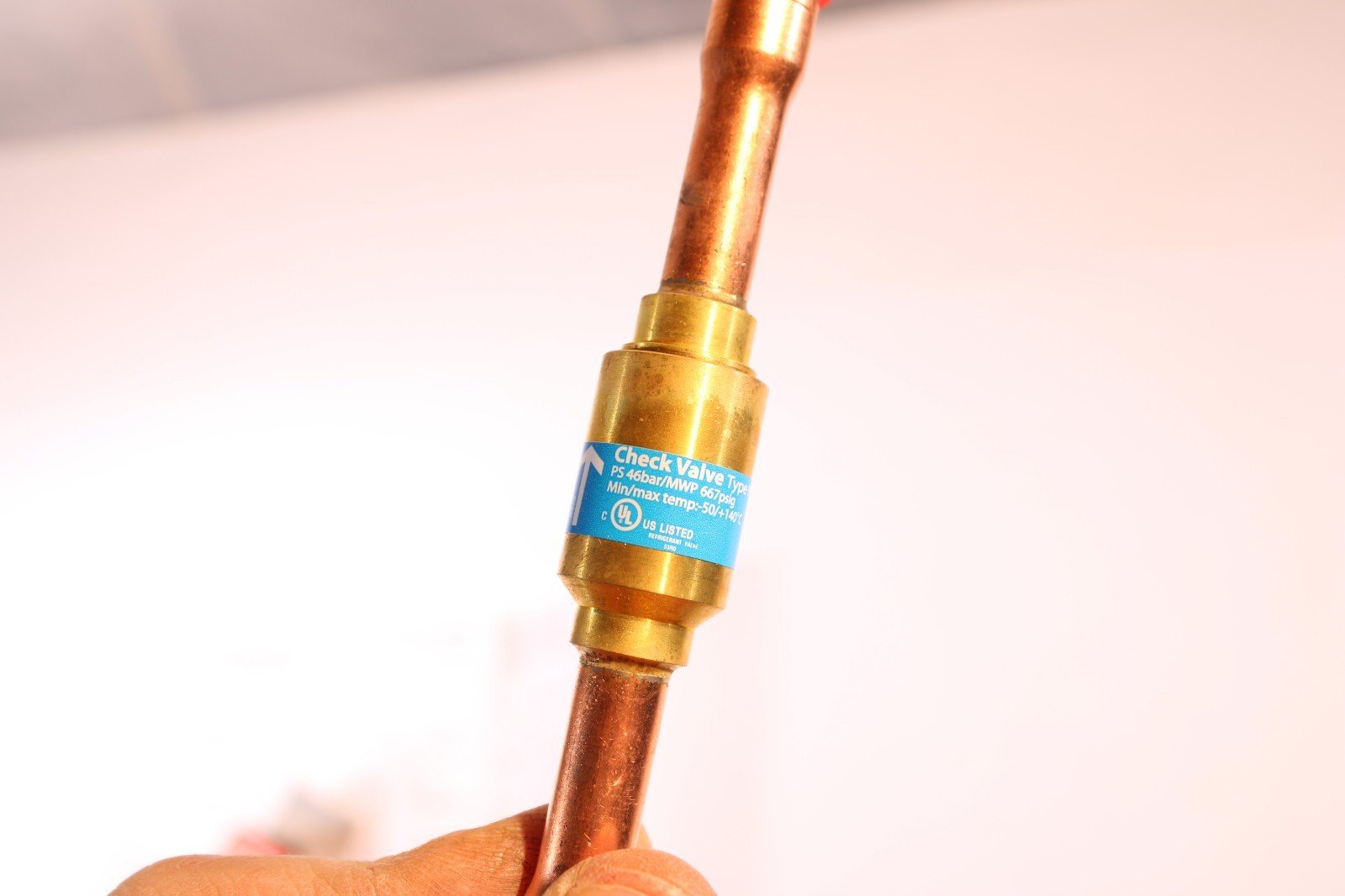

DANFOSS NRVH danfoss-nrvh check valve, MPN NRVH. This is a brass-bodied, unidirectional piston-type check valve with 10 mm ODF (brazing, outside diameter fitting) inlet and outlet connections. Designed for oil-free applications and compatible with a wide range of refrigerants. Certified to multiple international standards.

Main features

- Brand: DANFOSS

- Model: danfoss-nrvh

- Manufacturer part number: NRVH

- Type: Check valve (Clapet anti-retour)

- Product group: Check valves

- Body material: Brass

- Connection material: Copper

- Connection type inlet: Brazing, ODF, 10 mm

- Connection type outlet: Brazing, ODF, 10 mm

- Flow type: Straight, unidirectional

- Design: Piston

- Gross weight: 0.061 kg

- Net weight: 0.053 kg

- Volume: 0.173 L

- Kv value: 1.56 m³/h

- Cv value: 1.8 gal/min

- Maximum operating pressure: 49 bar (710 psig)

- Temperature range: -50 °C to 155 °C (-58 °F to 311 °F)

- Minimum pressure drop: 0.3 bar (4.3 psi)

- Minimum ODP: 0.2 bar (2.9 psi)

- Lubricant compatibility: Oil-free applications

- Refrigerants compatible: R1233zd(E), R1234yf, R1234ze(E), R1270, R134a, R170, R22/R407C, R290, R32, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R516A, R600, R600a

- UL approval: Yes

- Certified C UL US, EAC

- RoHS EU and China compliance: Yes with exemptions

- Packaging format: Industrial packaging

- Batteries present: No

Description

Clapet anti-retour DANFOSS NRVH danfoss-nrvh, MPN NRVH. Corps en laiton, type piston, unidirectionnel, avec connexions à braser ODF 10 mm entrée et sortie. Conçu pour les applications sans huile et compatible avec de nombreux réfrigérants. Certifié selon plusieurs normes internationales.

Caractéristiques principales

- Marque : DANFOSS

- Modèle : danfoss-nrvh

- Numéro de pièce fabricant : NRVH

- Type : Clapet anti-retour

- Groupe de produits : Clapets anti-retour

- Matériau du corps : Laiton

- Matériau de connexion : Cuivre

- Type de connexion entrée : À braser, ODF, 10 mm

- Type de connexion sortie : À braser, ODF, 10 mm

- Type d'écoulement : Droit, unidirectionnel

- Conception : Piston

- Poids brut : 0,061 kg

- Poids net : 0,053 kg

- Volume : 0,173 L

- Valeur Kv : 1,56 m³/h

- Valeur Cv : 1,8 gal/min

- Pression de service maximale : 49 bar (710 psig)

- Plage de température : -50 °C à 155 °C (-58 °F à 311 °F)

- Perte de charge minimale : 0,3 bar (4,3 psi)

- ODP minimum : 0,2 bar (2,9 psi)

- Compatibilité lubrifiant : Applications sans huile

- Réfrigérants compatibles : R1233zd(E), R1234yf, R1234ze(E), R1270, R134a, R170, R22/R407C, R290, R32, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515B, R516A, R600, R600a

- Homologation UL : Oui

- Certifié C UL US, EAC

- Conformité RoHS UE et Chine : Oui avec exemptions

- Format d'emballage : Emballage industriel

- Piles présentes : Non

TECHNICAL CONDITION & SAFETY INFORMATION

Condition

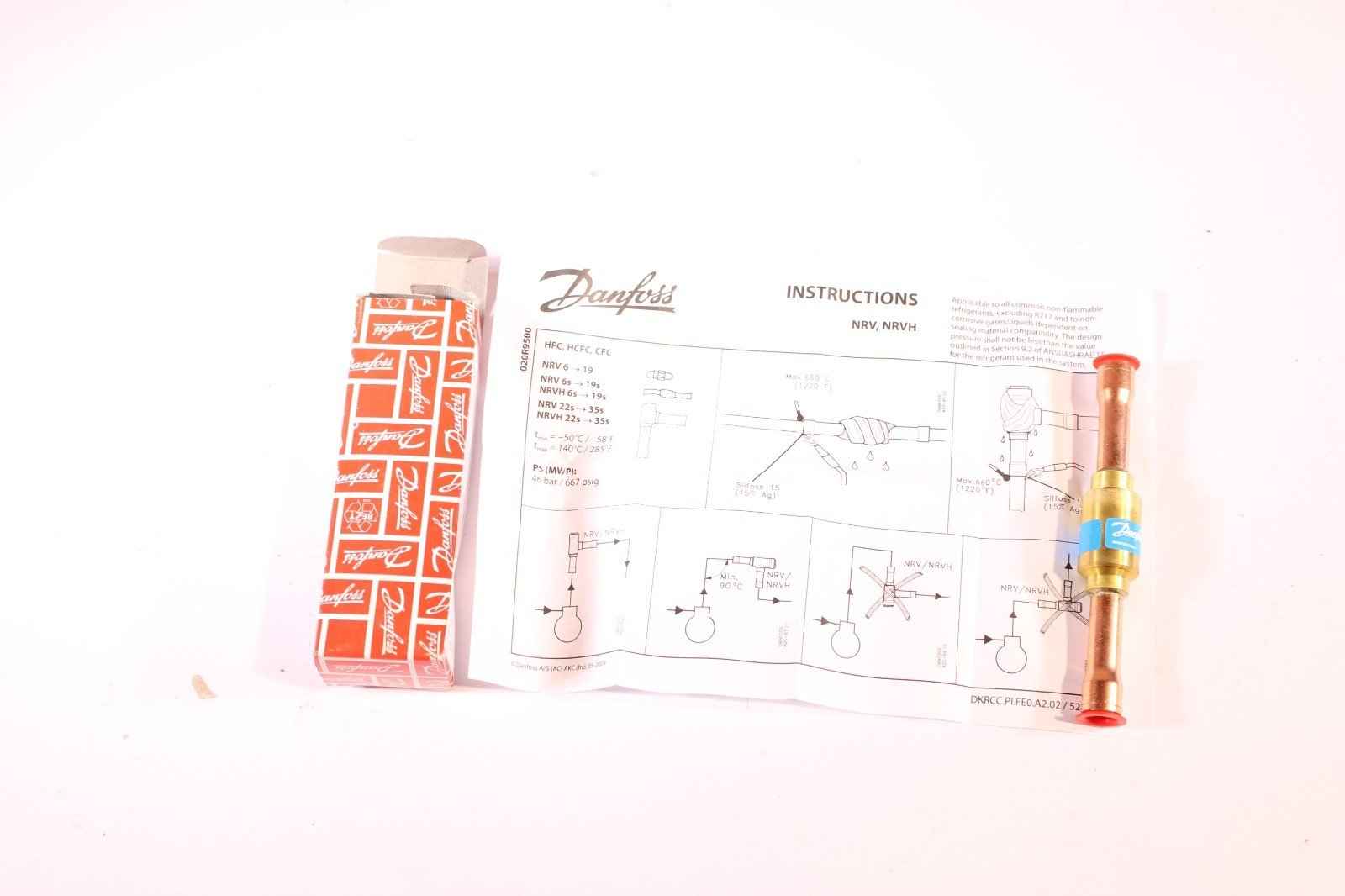

The item is in new condition and has not been tested by the seller. It has undergone visual inspection only. The packaging may show minor storage or handling wear but remains intact. No defects are known or visible. Only the DANFOSS NRVH valve is included; other accessories or documentation are not included unless specified.

Safety instructions
This product is a check valve designed for use in refrigeration or HVAC systems. It must only be installed and serviced by qualified personnel familiar with refrigeration equipment. There may be risks linked to improper installation, pressurized systems, or use with unsuitable refrigerants. Always ensure system is depressurized before service. Follow all relevant official and local guidelines. The seller is not the manufacturer and provides this item in line with original specifications. Refer to the official DANFOSS documentation for detailed technical and safety information.

Compliance note (GPSR)
No explicit manufacturer warning and safety instructions for the DANFOSS NRVH were available in the data provided. Typical foreseeable risks linked to the type (refrigeration check valve) and the need for installation by qualified personnel can be inferred, but full GPSR conformity requires that verified, explicit user safety and warning instructions are present.
