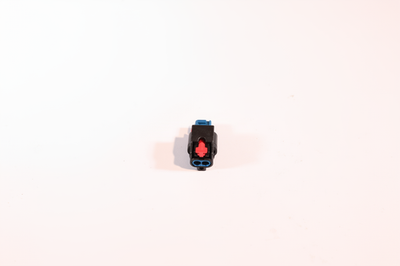

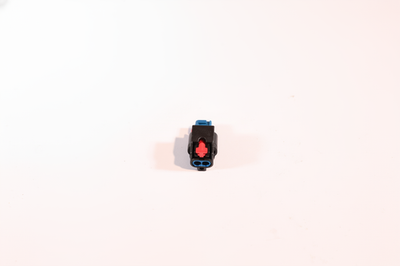

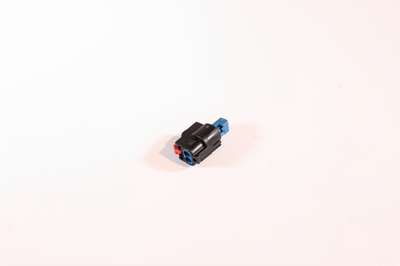

1500x TE Connectivity AMP 1-1924067-6 2 Position MCON 1.2 CB IP67

Description

1500x TE Connectivity / AMP Brand te-connectivity-/-amp-brand-1-1924067-6

Description

TE Connectivity / AMP Brand te-connectivity-/-amp-brand-1-1924067-6 is a 2 Position, MCON 1.2 CB Receptacle Housing, MPN 1-1924067-6. This device is designed for automotive wire-to-wire applications, featuring a rectangular, sealed housing for female terminals. It is suitable for power circuits and supports up to 25 A at voltages of 12 V, 24 V, or 48 V. The connector is blue, IP67 rated, and constructed from PA GF (polyamide with glass fiber), with a 4 mm centerline pitch.

Main features

- Brand: TE Connectivity / AMP Brand

- Model: te-connectivity-/-amp-brand-1-1924067-6

- Manufacturer Part Number: 1-1924067-6

- 2 positions, MCON 1.2 CB Receptacle, Top Lock Sealed

- Automotive Housings, MCON 1.2mm series

- Housing for Female Terminals

- Rectangular shape, Keyed mating alignment

- Sealable, IP67 ingress protection

- Contact size: 1.2mm, Mating tab width: 1.2 mm [0.047 in]

- Wire-to-Wire connector system

- Contact current rating (max): 25 A

- Nominal voltage architecture: 12 V / 24 V / 48 V

- Housing material: PA GF (Polyamide with Glass Fiber)

- Centerline (pitch): 4 mm [0.157 in]

- Product length: 15 mm [0.591 in]

- Product width: 26.5 mm [1.043 in]

- Connector height: 15.8 mm [0.622 in]

- Operating temperature range: -40 to 170 °C [-40 to 338 °F]

- Primary locking feature: Clean Body

- Terminal position assurance: Yes

- Connector mounting type: Cable Mount (Free-Hanging)

- Serviceable: Yes

- Connector position assurance capable: Yes

- Strain relief: Without

- Primary product color: Blue

Description

TE Connectivity / AMP Brand te-connectivity-/-amp-brand-1-1924067-6 est un boîtier réceptacle MCON 1.2 CB à 2 positions, MPN 1-1924067-6. Ce dispositif est conçu pour des applications automobiles fil-à-fil, avec un boîtier rectangulaire étanche pour terminaux femelles. Il convient aux circuits de puissance et supporte jusqu'à 25 A sous 12 V, 24 V ou 48 V. Le connecteur est bleu, classé IP67, et fabriqué en PA GF (polyamide renforcé fibre de verre), avec un pas de 4 mm.

Caractéristiques principales

- Marque : TE Connectivity / AMP Brand

- Modèle : te-connectivity-/-amp-brand-1-1924067-6

- Numéro de pièce fabricant : 1-1924067-6

- 2 positions, réceptacle MCON 1.2 CB, verrouillage supérieur étanche

- Boîtier automobile, série MCON 1.2mm

- Boîtier pour terminaux femelles

- Forme rectangulaire, alignement de connexion par clé

- Étanche, protection IP67

- Taille du contact : 1,2 mm, largeur de languette : 1,2 mm [0,047 in]

- Système de connexion fil-à-fil

- Courant maximal du contact : 25 A

- Tension nominale : 12 V / 24 V / 48 V

- Matériau du boîtier : PA GF (polyamide renforcé fibre de verre)

- Pas : 4 mm [0,157 in]

- Longueur du produit : 15 mm [0,591 in]

- Largeur du produit : 26,5 mm [1,043 in]

- Hauteur du connecteur : 15,8 mm [0,622 in]

- Température de fonctionnement : -40 à 170 °C [-40 à 338 °F]

- Verrouillage principal : Clean Body

- Assurance de position des terminaux : Oui

- Montage du connecteur : sur câble (libre)

- Réparable : Oui

- Assurance de position du connecteur : Oui

- Sans soulagement de traction

- Couleur principale : Bleu

TECHNICAL CONDITION & SAFETY INFORMATION

Condition
This item is new and appears unused following a visual inspection. There are no visible defects or signs of prior use. The product is supplied in bulk packaging which may show minor marks due to storage or handling. The item has not been electrically or functionally tested by the seller. Only the product as shown is included; no additional accessories or documentation are provided.

Safety instructions
This product is a connector housing for female terminals made by TE Connectivity, intended for electrical applications such as wire-to-wire or wire-to-device connections. Handle the item to prevent mechanical damage. Use only with compatible terminals and cables as specified by the manufacturer. Improper installation could lead to electrical or mechanical faults. For safety and compliance, installation should be performed by qualified personnel following the manufacturer's documentation. The seller is not the manufacturer and does not provide technical or installation advice. Always consult the official product datasheet and guidelines for correct and safe usage.

Compliance note (GPSR)
No official manufacturer guidance or product datasheet was found specifying foreseeable risks, intended use for non-technical end users, or a mandatory requirement for installation exclusively by qualified personnel. Publicly available data only confirms that the item is a sealed connector housing for female terminals, typically used for wire-to-wire and wire-to-device applications. Additional safety, risk, or installation requirements must be referenced from the official TE Connectivity datasheet or installation manual.
